Key Features

• 200 and 300dpi models
• 150mm/sec print speed (200dpi)
• 102mm/sec print speed (300dpi)
• 168mm print width
• 450m ribbon length
• Ribbons coated inside or outdside
• Free software
• USB, serial and Ethernet interfaces
• WiFi and parallel interfaces optional
• Stand-alone mode

Downloads

• EZ-6000 Series Brochure
• T10 External Rewinder Brochure
• NiceLabel Range Overview

Manuals

• Quick Start Guide
• User Manual
• EZPL Programming Language
• Network Setup Guide

Drivers

• Windows 2000, XP, Vista, 7, Server 2003 & Server 2008
• Linux Umbutu 9.04 & 9.10

Software

• NiceLabel SE (29Mb)

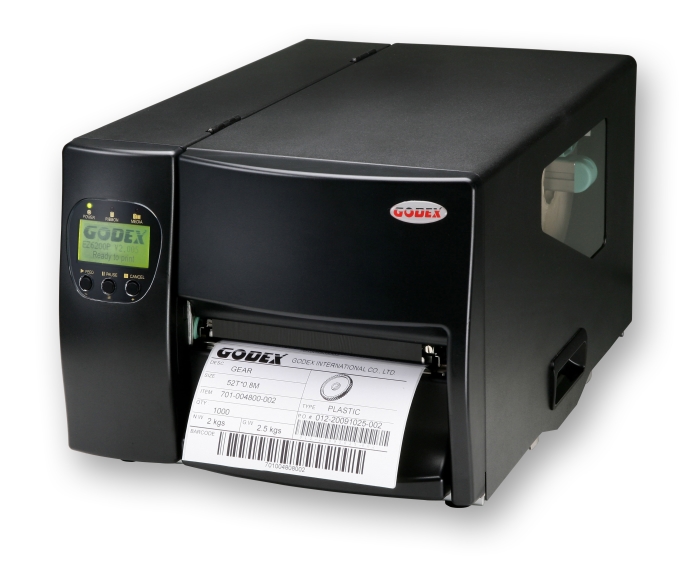

Industrial 6" Wide Label Printer Range

Godex EZ-6200 Plus and EZ-6300 Plus printers offer heavy-duty performance for high volume applications and harsh industrial environments at an affordable price. A choice of 200 and 300 dpi resolution models are available and both can print in either thermal transfer (with ribbon) or direct thermal (without ribbon) modes. With 168mm print width, EZ-6000 series printers are ideal for printing A5 apllet labels.

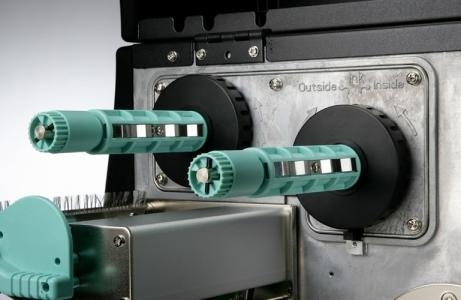

For long printing runs label roll sizes up to 200mm diameter can be accommodated. In thermal transfer print mode, standard 450m long ribbons are used which can be inside or outside coated for maximum flexibility.

EZ-6000 series printers come as standard with serial, USB and Ethernet ports with WiFi and parallel optional.

For stand-alone operation, EZ-6000 series printers have a Compact Flash slot as standard and optional PS2 keyboard connector allowing label designs to be created on a PC and downloaded to an on-board Compact Flash card. The PC may then be disconnected and label designs selected using the keyboard and built in display. Variable data such as batch codes can be entered via the keyboard.

Twin sensor technology is included as standard. Die cut labels can bebe detected with a transmissive gap sensor whilst tags or clear labels can be detected with a reflective 'eye mark' sensor.

Options include cutter, internal rewinder and label dispenser with backing paper rewinder modules.

GoLabel software is included free with all Godex printers and allows all but the most complex labels to be designed and printed. For advanced requirements, the NiceLabel Expressrange is available. Click here for more details of the NiceLabel range.

Image Gallery

Click on image to enlarge
