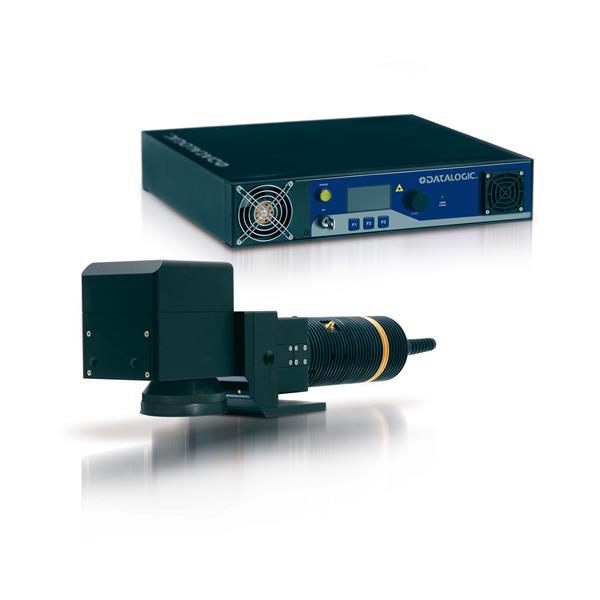

Datalogic V-LASE Series

V-LASE series lasers use end-pumped Diode Pumped Solid State (DPSS) Q-switched laser sources with 1064nm wavelength. Three models are available with 10, 15 and 20W nominal power for marking many materials including:

Metals including aluminium, titanium, steel, aluminium alloys...
Plastics including ABS, PP, PES, PET, PVC...

A choice of 8 lenses is available for marking areas from 35 x 35mm to 220 x 220mm. A visible LED marking area indicator is included as standard to make setting for new products quick and easy.

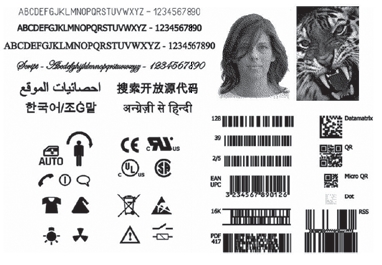

Datalogic Lighter Suite software provides a powerful yet easy to use editor for creating marking images. Text, graphics, barcodes and 2D codes can be included in marking messages. Graphics can be included as vector (outline) or raster (bitmap) depending on the required result.

Downloads

Datalogic V-LASE Series

Image Gallery

Click on image to enlarge

Datalogic EOX CO2 Laser Coder

Datalogic ULYXE DPSS Laser Coder

Datalogic AREX Fibre Laser Coders

Datalogic UV-LASE Series

Datalogic GREEN-LASE Series
