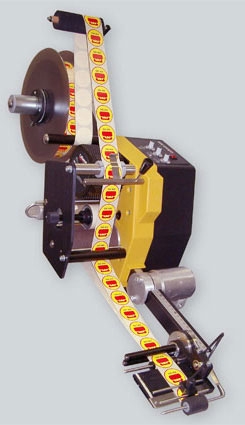

![Collamat ECO Series Label Applicators](images/Collamat/2610.jpg)
Key Features
- Low cost applicator series
- 15, 25 and 50m/min models
- Heavy-duty build
- Printer-and-apply options
Downloads
|
Low Cost Range of Industrial Label Applicators

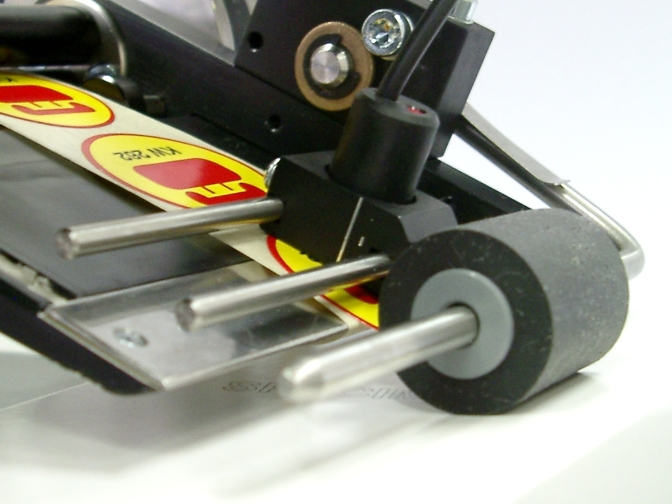

- Despite their low cost, Collamat ECO Series label applicators are built to the same standard all other Collamat systems. The ECO Series has been designed to meet the needs of customers needing to apply labels to regularly shaped products moving at a fixed speed. The maximum label width (including backing paper) is 95mm. Three models are available with maximum dispense speeds of 15, 25 and 50m/min. All models feature a fixed applicator beak with spring loaded pinch roller to smooth labels down and can be used for top, side or bottom labelling applications. A thermal transfer print engine can be fitted to allow print-and-apply operation... click here for more information.
-
Which Collamat ECO to choose...
|
2610 ECO
|
4310 ECO
|
7310 ECO
|
Max. label width: |
95mm |
95mm |
95mm |
Max dispense speed: |
15m/min |
25m/min |
50m/min |
Accuracy: |
+/-1mm |
+/-0.7mm |
+/-0.7mm |
Max. label roll size: |
250mm |
350mm |
350mm |
