Standard Series Label Applicators














Collamat 7600 Series label applicator



Collamat tamp applicator



Key Features

  • Low cost applicator series
  • 15, 25 and 50m/min models
  • Heavy-duty build
  • Printer-and-apply options



Downloads





Modular Range of Industrial Label Applicators

▪ Modular design allows many configurations for different applications
▪ Swiss-made to the highest industrial standards

▪ 95mm and 160mm wide models

Precision, reliability and flexibility come as standard with all Collamat label applicators. The range includes four standard model ranges each of which can be configured to suit a wide variety of applications. The choice of applicator modules includes:
Fixed beak with spring loaded roller, fixed roller or brush
Electro-magnetic beak for labelling into recessed surfaces
Tamp applicator for maximum precision

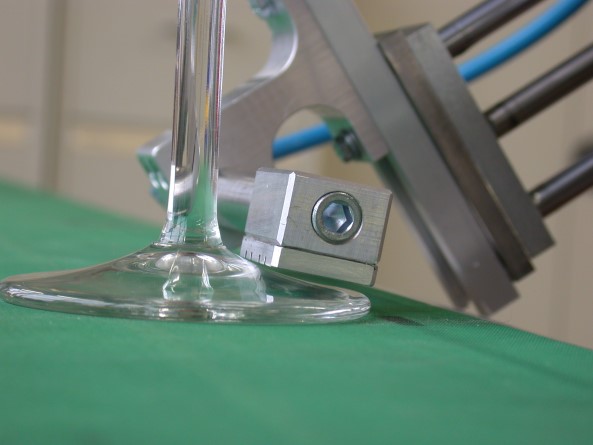

Blow applicator for fragile and uneven products
Custom applicators for special requirements



The flexible, modular design allow a choice of print engines and coders to be fitted to turn a Collamat applicator into a print-and-apply system either when initially installed or at a later date. In addition, the modular design allows Collamat applicators to be converted from right to left hand or vice versa.




Which Collamat standard system to choose...



3600 Series

4300 Series

6600 Series

7300 Series

7600 Series

Max. label width:
95 or 160mm
95 or 160mm
95 or 160mm
95 or 160mm
95 or 160mm
Max dispense speed:
20m/min
25m/min
30m/min
50m/min
50m/min
Accuracy:
+/-1mm
+/-0.7mm
+/-1mm
+/-0.7mm
+/-0.5mm
Max. label roll size:
250 or 350mm
250 or 350mm
250 or 350mm
250 or 350mm
250 or 350mm
Label position potentiomenter:
Optional
Optional
Yes
Optional
Yes
Encoder option:
No
No
Yes
No
Yes
Non-stop operation option:
No
No
Yes
No
Yes
Low label sensor option:
Yes
No
Yes
No
Yes

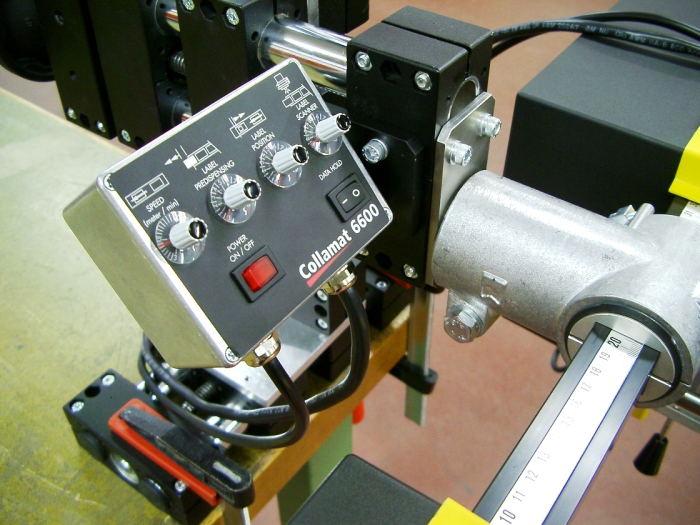

Remote control option:
Yes
No
Yes
No
Yes
Web break sensor option:
Yes
No
Yes
No
Yes
Brochure:


Image Gallery

Click on image to enlarge
