EOX CO2 Laser Coders

10 and 30W CO2 laser systems for marking a wide variety of materials either stationary or on-the-fly up to 75m/min including:

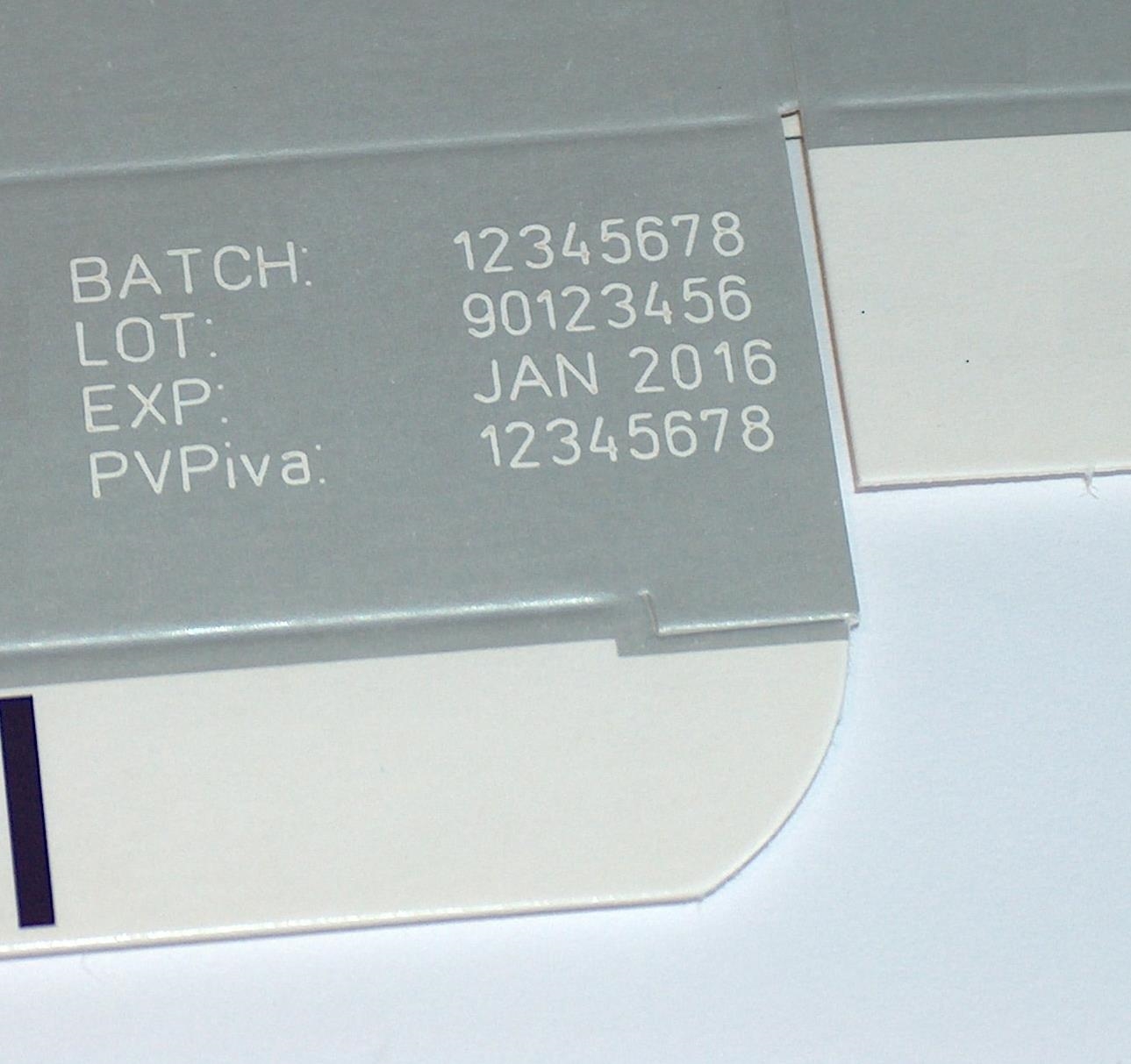

Printed and unprinted cardboard
Printed paper
PET
Many plastics
Wood & cork
Concrete & ceramics
PVC
Painted and coated metals

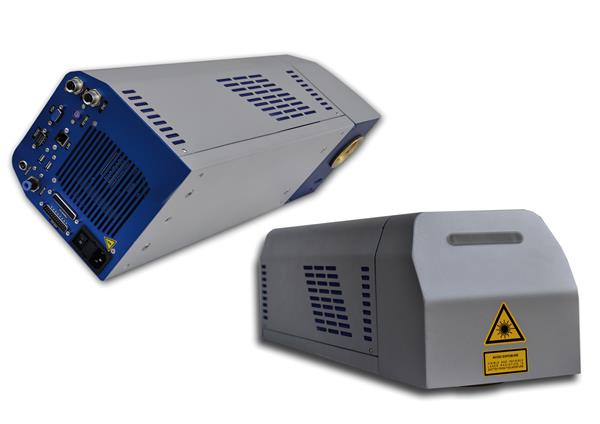

EOX 10W is a fully self-contained coder housed in a compact unit which can be easily installed on most production lines.

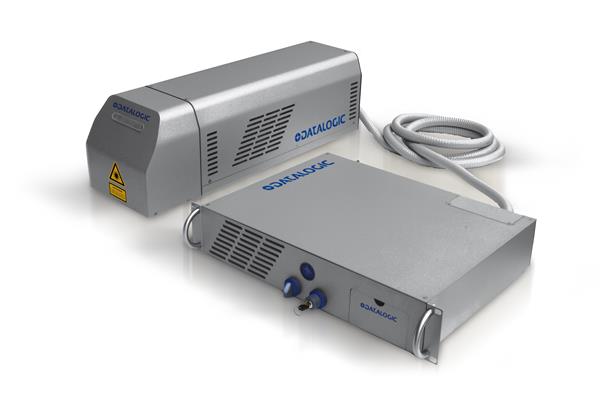

For high speed marking EOX 30W has a compact marking head and separate 19" rack power supply and control unit.

Both models can be used with 100 or 200mm focal length lenses giving marking areas of 70 x 70mm and 100 x 100mm respectively. A visilble LED marking area indicator is included as standard making it easy to set up marking on product changeovers.

Datalogic Lighter Suite software provides a powerful yet easy to use editor for creating marking images. Text, graphics, barcodes and 2D codes can be included in marking messages. Graphics can be included as vector (outline) or raster (bitmap) depending on the required result.
