Datalogic laser coders

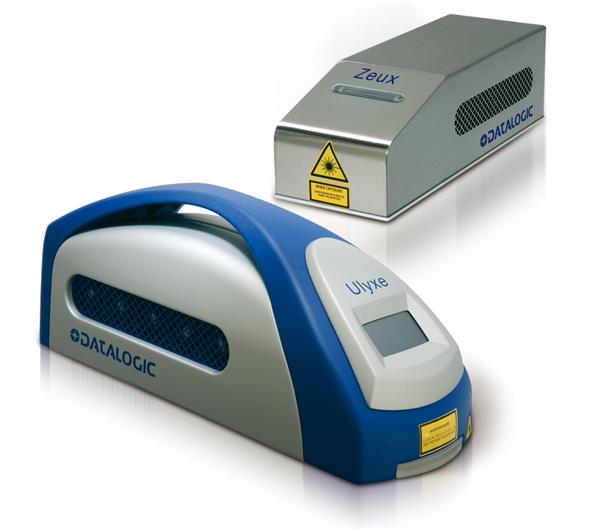

Datalogic ULYXE laser coder





Datalogic ULYXE laser coder



Downloads





ULYXE CO2 Laser Coders

ULYXE uses a 6.5W Diode Pumped Solid State laser source with Q-Switch to generate a pulsed laser beam suitable for high-contrast marking of non-doped plastics and metals. The compact marking head is available in a choice of polycarbonate or stainless steel both measuring little over 400mm long.



A choice of 125, 186 or 298mm working length lenses giving marking areas of 50 x 50mm, 100 x 100mm and 140 x 140mm respectively. A visilble LED marking area indicator is included as standard making it easy to set up marking on product changeovers.

Datalogic Lighter Suite software provides a powerful yet easy to use editor for creating marking images. Text, graphics, barcodes and 2D codes can be included in marking messages. Graphics can be included as vector (outline) or raster (bitmap) depending on the required result.


Image Gallery

Click on image to enlarge
